Desktop Annealing・Nitriding Treatment EquipmentThis model enables the film to be reformed by the heat treatment of a wafer in a vacuum.

SAN1000

Pressure control during heat treatment (annealing) to the substrate and heat treatment by introducing inert gas is possible.

POINT

  • Even when in N2 or Ar gas introduction, the rapid and uniformity heating can be done up to 1000℃.
  • Rapid cooling is possible without blowing a substrate.
  • Space saving.

Outer dimension (Main unit)

W582mm×D450mm×H411mm

Heating controlVacuum pressureCombination
200℃〜
1000℃
≦10Pa

Outline・Application

SAN1000 is the annealing system which can carry out the heat processing by applying an infrared radiation onto substrate up to 4 inches in a vacuum or in a clean environment with vacuum gas atmosphere.

This is the table top type compact size batch system which can allow you to take out the substrate within a short period of time after the treatment due to its excellent cooling mechanism of chamber and gas flow.



Feature

【Feature1】Heat treatment method

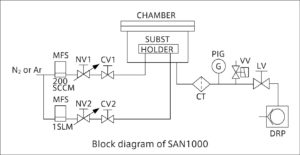

Substrate heat treatment is possible in the chamber in vacuum condition using the dry scroll pump. In addition, heat treatment can be performed in various vacuum gas atmospheres by adjusting the flow rate with a needle valve. The flow rate can be adjusted with good repeatability by the mass flow monitor.

【Feature2】Diversity

Rapid temperature rise from 200 ℃ to MAX1000 ℃ is possible.

【Feature3】Even Heat Treatment

The heat treatment is possible evenly within ±1.5% for the heat distribution at 800℃ on 4 inch substrate .

【Feature4】High Speed Cooling

Water cooled cold wall structure and substrate cooling gas mechanism realize the high speed cooling.

【Feature5】Others

This is the desktop type compact annealing system.



Performance

【Feature1】Better Temperature Control

A better temperature control is possible using the optimized PID algorism.

【Feature2】Better operability

After the confirmation of gas flow rate and cooling water flow (with interlock), simply press the heating button and the process can be performed automatically according to the pre-set heating conditions. With the cooling mechanism, substrate can be quickly taken out after the treatment and the next performance can be continuously arranged in a short time.

【Feature3】High Level of Safety

A whole chamber is water cooled and various interlocks for vacuum exhaust, heating and cooling water amount, etc. are equipped with this model.

SAN1000 Specification

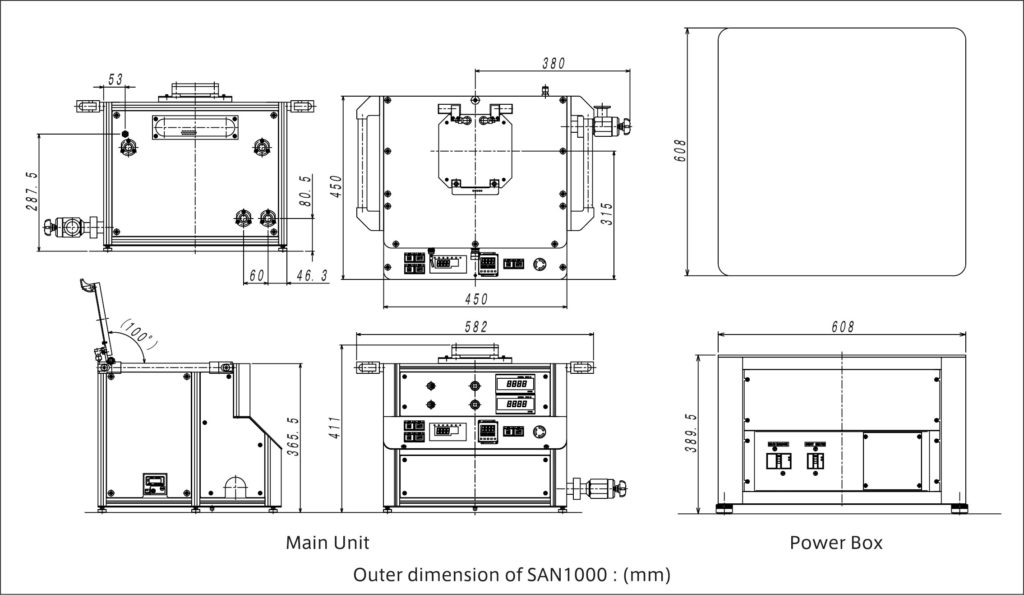

SAN1000 Outer dimension

MAINTENANCE

Please contact us for repair and modification of our systems.
