ALD (Expandable type)This equipment is the system suitable for laboratory use to realize the precise step coverage deposition for uniform coating of each atomic layers.

SAL3000Plus

Space saving with substantial functions
Various experiments possible by the combination with other systems

POINT

  • Width reduced by 40% as compared to SAL3000
  • Deposition direction selectable
  • Combination possible with other Plus series

Outer dimension (Main unit)

W835mm×D700mm×H1644mm

PrecursorUniformitySubstrate heaterCombination
4 lines
(Max. 6 lines)
≦±3%350℃
(800℃)
✔️(SAL3000+U)

Outline・Application



This model was developed for R&D.
This equipment is the system suitable for laboratory use to realize the precise step coverage deposition for uniform coating of each atomic layers.

SAL3000Plus is designed so that the size can be smaller than SAL3000 with the deposition performance maintained.



The sample film kinds stipulated herein are just for the reference purpose only.



Features

【Features1】Deposition distribution with higher quality

Deposition performance is ≦±3% within Φ100mmarea.
The pin hole free layer deposition can be evenly performed for each atomics on the substrate surface.
The deposition for uneven surface or 3D shape can be suitable due to its step coverage.



【Feature2】Selectable Deposition Direction

Depending on the deposition direction, the model name changes such as d SAL3000U(Deposition up) and SAL3000D.



【Feature3】Combination with other systems

Load Lock function can be installed on SAL3000Plus which has an expansion port at the side of the unit by combining with STR2000.

For the combination with other systems, connection port position needs to be changed.



アニール装置との複合化例

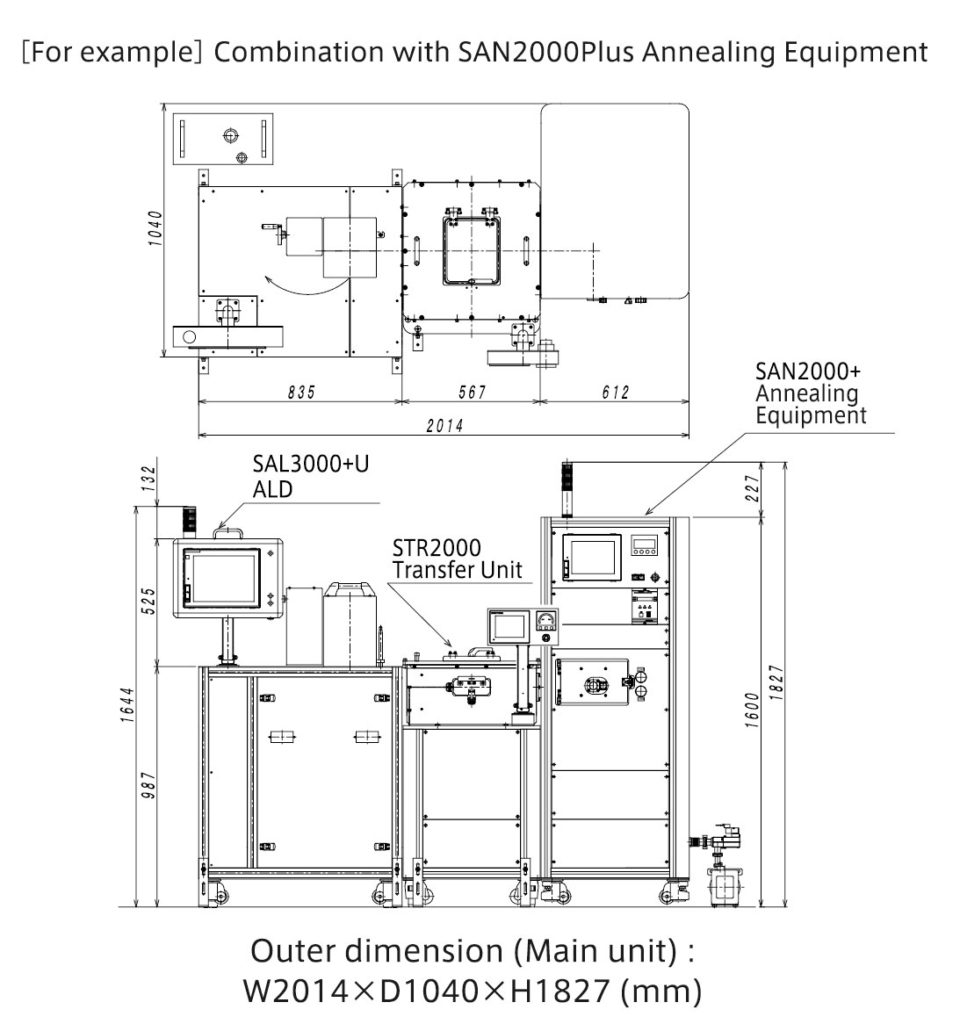

[For example] Combination with SAN2000Plus



【Feature4】Easy-to-use program

Touch screen is placed at an elevation angle for better visibility and operability.
GUI(Graphical User Interface) is employed for an easier operation.
The deposition process can be stored up to 30 recipes and can be loaded into USB memory.



タッチパネルディスプレイ

Touch pad display



【Feature5】Various options

Ozone generator, Exhaust gas treatment system, substrate heating(Max.800℃) and precursor heater up to Max. 200℃ are available as optional items.



【Feature6】Abundant connection ports for precursor bottles.

4 Precursor bottles can be accommodated as standard and two more precursors can be added as an option, so that various experiments can be carried out.
A standard bottle has a jacket heater for Max. 150℃. and one for Max.200℃ can be available as an option.



【Feature7】Dry Pump

A dry pump for 500L/min. is equipped with the system so that it can be used even in a clean room. N2 gas is recommended for long life, depending on process conditions.



ドライ真空ポンプ



SAL3000Plus Specification

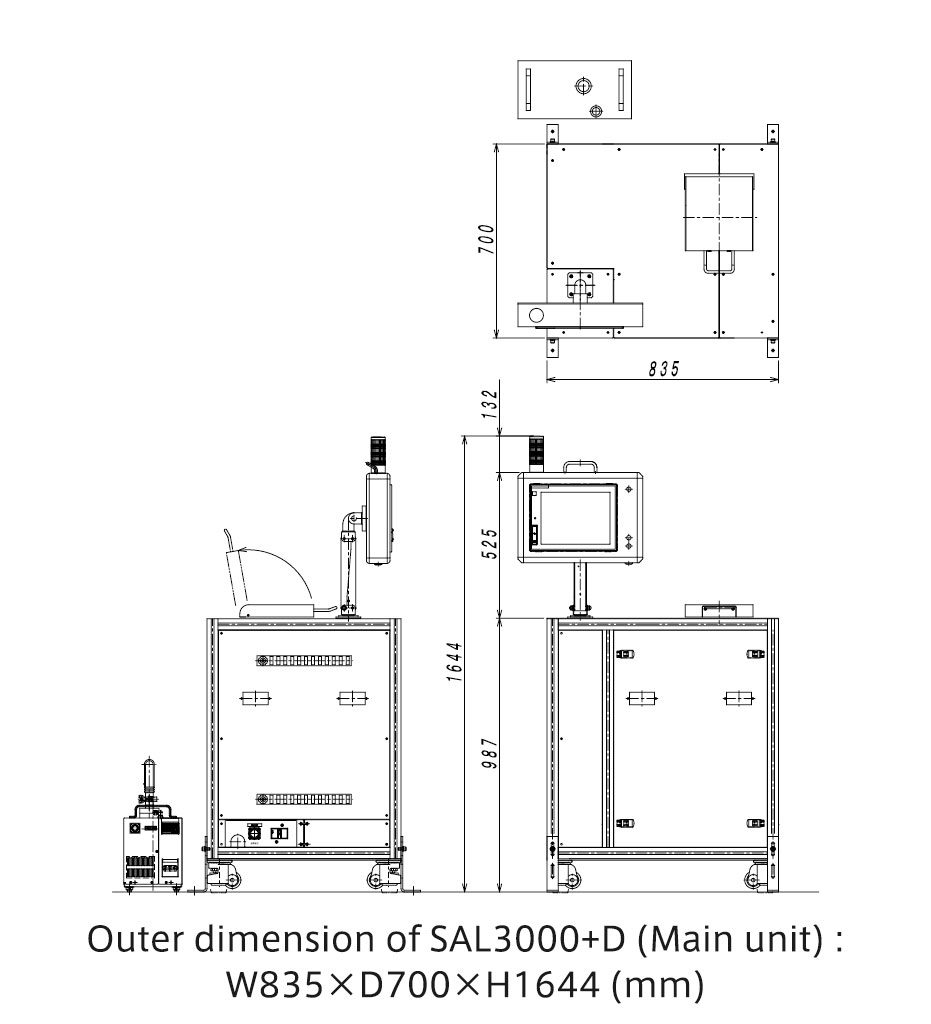

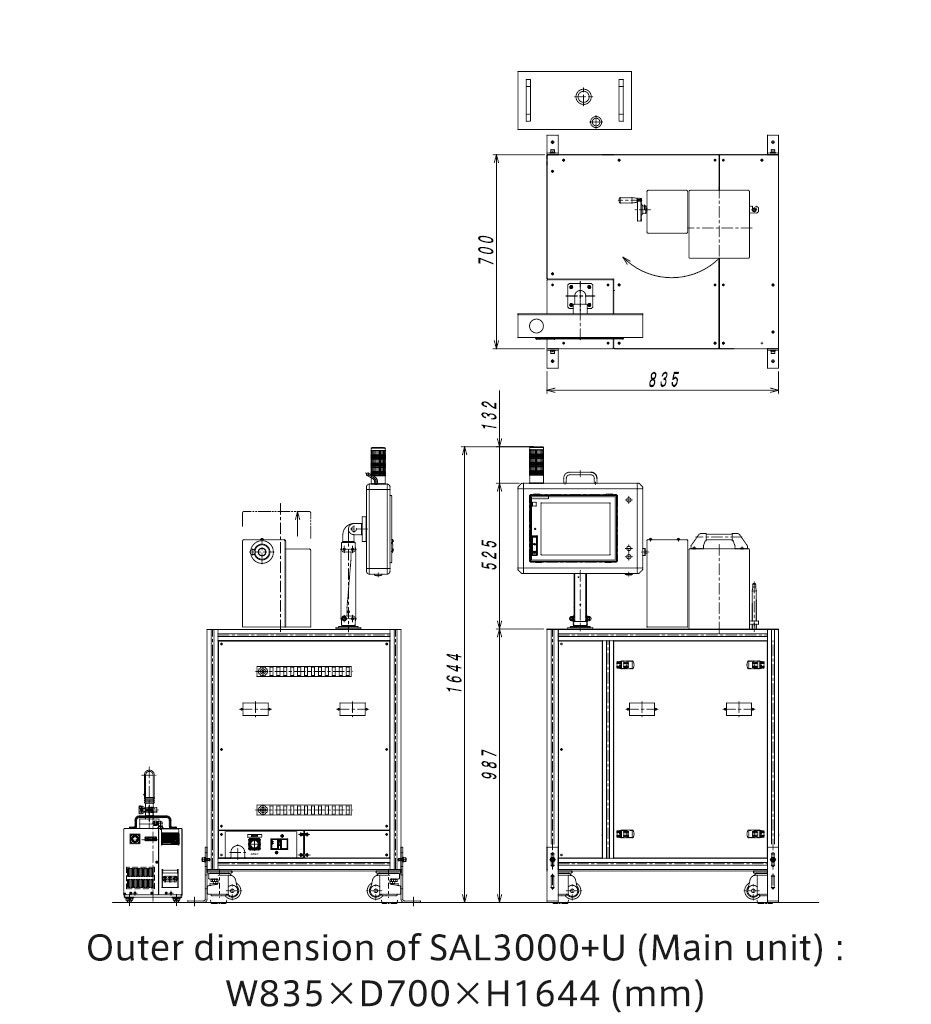

SAL3000Plus Outer dimension



 Option

The following optional items are available.

【Feature1】Additional precursor

Max.6 precursors can be installed by adding two connection ports.

【Feature2】High Temperature Substrate Heating Mechanism

The normal heater is for Max.350℃. but it can be replaced with the one for Max.800℃ as an option. Annealing process may be made, although the dedicated annealing system is superior.
If the dedicated annealing system is required, SAN2000Plus is available.

【Feature3】Ozone Generator

This generator can be used instead of H2O to make Oxygen atoms react to make a thin film. The vacuum time can be reduced without H2O and the deposition can be made at the low temperature as well.

【Feature4】Exhaust Gas Treatment Unit

The precursor gas exhausted by ALD can be decomposed at high temperature heating. The effect can be obtained if the flow is within a range.



排ガス処理装置

【Feature5】Heater for Precursor

The jacket heater for precursors (Standard Max. 150℃) is available to maintain steady vaporization of a precursor within a bottle. The jacket heater for precursor (Max.200℃) is available as well.
A thermocouple can control the heater setting temperature and actual temperature of precursor on the operation panel.
