Sputtering Equipment with Glove BoxSputtering equipment is a PVD-type thin film forming equipment that utilizes the sputtering phenomenon in which ionized Ar gas under plasma discharge collides with a target at high speed, and target atoms ejected by the collision are deposited on the substrate.

SSP2500G

Samples can be taken in and out without being exposed to the atmosphere
This Sputtering equipment can materialize customers' needs.

POINT

  • Dual-cathode single tower type
  • Target and wafer can be opened in a glove box.
  • Auto-matcher is standard and capable for fully automated film formation.

Outer dimension (Main unit)

W750mm×D1081mm×H1918mm

CathodeUniformitySubstrate heaterCombination
2 pieces≦±5%(Substrate rotation)300℃×

Outline・Application



It plays an active role in R&D applications such as metal films, insulating films, conductive films, protective films, reflective films, catalysts, coatings, circuits, batteries, MEMS and new advanced material.

Anaerobic targets and substrate samples can be deposited without a special care because it’s equipped with a simple glove box that supports both vacuum replacement and gas replacement,



Feature

【Feature1】Dual-cathode

Equipped with two φ2 inch magnetron cathodes (with shutters), and a film thickness distribution within ± 5% up to φ100mm can be performed. By switching the cathode to be discharged, this equipment can also form stacked layers.



【Feature2】Simple Glove Box

Equipped with a simple glove box (made of acrylic resin) that can be vacuum-replaced, it is possible to replace the substrate and detach the target without exposing it to moisture and oxygen in the atmosphere.
Both the glove box and pass box can be evacuated and replaced with nitrogen gas.
Equipped with a gas introduction/exhaust control valve, pressure gauge, check valve and torch light.



Simple Glove Box

簡易型グローブボックス



【Feature3】RF Power Source with Auto-Matcher Function

Since the 13.56MHz 200W RF power supply made in Japan has an auto-matching function as standard, fine adjustment during plasma discharge is performed automatically.
Only the SSP2500G is equipped with an auto matcher as standard in the SSP series. However, this unit’s RF power supply does not have a pulse oscillation function.



【Feature4】Automated Deposition Function

 After the placement of a substrate, deposition recipes can be made up to 10.
The film forming process can be performed automatically without the operator’s presence for in-process operation, shutter drive, and cathode switching, etc.



【Feature5】Touch Screen Program in pursuit of the operability

It employs GUI (Graphical User Interface) for its program which allows the operator to work intuitively and has visibility to check various statuses including operating conditions, and operability to make an easy adjustment for valves and setting items.

It supports a fully automated film formation process linked with an auto matcher and can store up to 10 recipes. During the process, the status of the device can be easily observed with status messages.
It’s also equipped with a program to manage the rate of power increase to prevent target cracking. In addition, it has various interlocks, alarm functions, and a function to note which type of target is attached to targets 1 and 2. This touch screen program assures you of the good operability and safety.

It is designed under the assumption that modification will be needed to meet the requirement which can be changed on a daily basis to be capable for such modifications so the cost for changing the program can be relatively low.



SSP2000Gステータス画面

Status display * This display includes the reverse sputtering function and additional gas introduction as options.

【Feature6】Space saving slim tower design

A slim tower shape design, 608 mm(W) x 800 mm(D), is employed that combines the deposition chamber, exhaust system and control system all into one.
Compared to a device with a separate main body and control stand, it has a clean appearance with no extra wiring exposed on the back of the device. It can be easily moved during relocation work or indoor layout changes after the installation and it can reduce such work volume and cost.



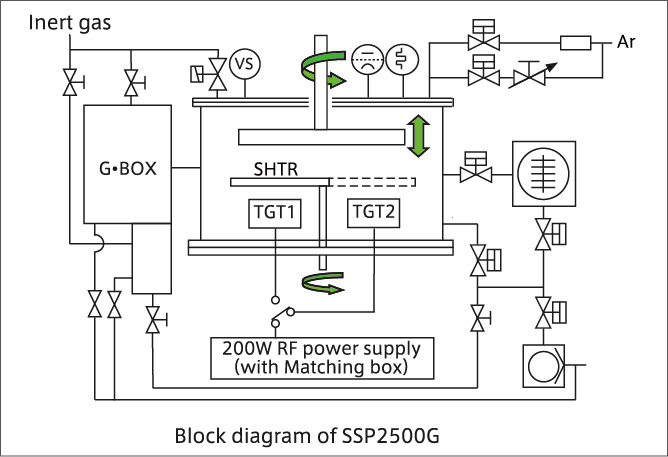

SSP2500G Specification





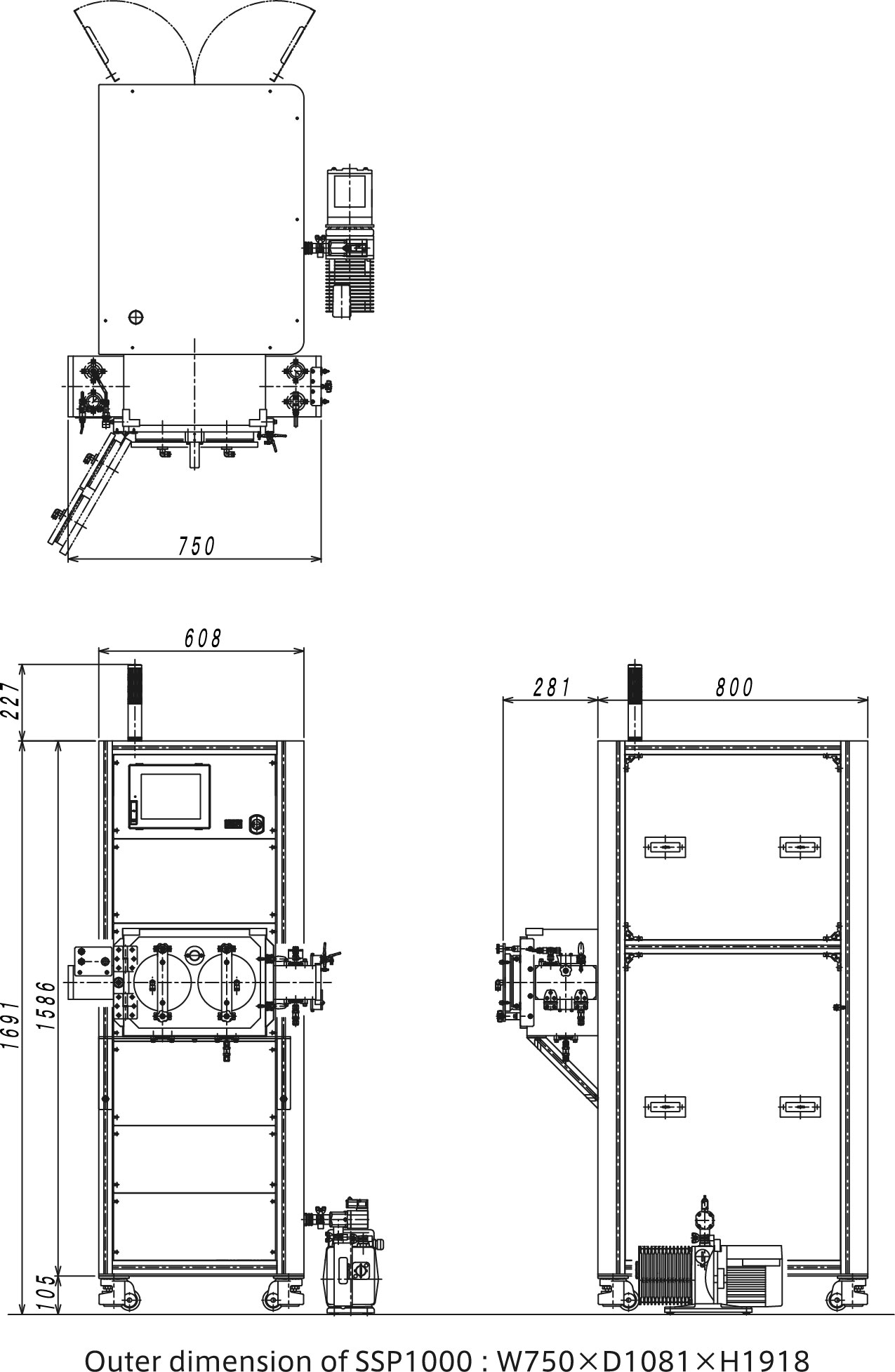

SSP2500G Outer dimension



OPTION

Various options are available.



1.Deposition of magnetic materials

 In case of film deposition with magnetic materials such as iron (Fe), a stable plasma discharge cannot be obtained by the standard magnetron cathode.
Therefore, it is possible to select the specifications of the cathode for magnetic materials. Even after the installation, both magnetic and non-magnetic materials can be used by parts replacement.



2.Deposition of thin targets

 The dimension of cathode is φ50.8mm x t3mm as the standard. For the demand to minimize the cost for the target to be 3mm thick or for the less frequent film deposition, shield and target holder for thin targets such as 1 mm and 2 mm is available.
* Depending on the material, thin targets may be difficult to be discharged.
* Abnormal discharge may occur in the extra space between the target and the shield when thin target is sputtered in combination with standard 3mm thick parts and film deposition may not be established.



3.Reverse sputtering mechanism

By adding a reverse sputtering mechanism, it is possible to clean the surface by removing the oxide film adhered to the substrate surface as a pretreatment for film formation.



4.Additional process gas introduction

 Additional process gas introduction system can be added to be 2 lines. It is necessary for reactive sputtering to introduce oxygen or nitrogen.



5.Chamber baking function

Aluminum chamber baking is possible with cassette heaters. It is useful to improve ultimate vacuum.



6.Replaced to dry pump

The subsidiary pump can be replaced from rotary pump to dry pump. Basically, a dry pump is required in a clean room. Our non-contact multi-stage roots type dry pump can offer maintenance-free clean vacuum condition over a long period of time.



ドライポンプ



TECHNOLOGY

SUGA’s Sputtering Equipment

 Sputtering equipment is a film-forming equipment that uses sputtering method, which is classified as physical vapor deposition (PVD) within the category of vacuum thin film formation. Thin films obtained by sputtering equipment have excellent adhesion to substrates, high reproducibility during repeated film formation, and the ability to produce high melting point materials and alloys. It is also possible to produce oxide and nitride films as well as metal films and insulating films that are indispensable for functional materials such as semiconductors and electronic devices.
SUGA Co., Ltd. has applied technology and strict quality standards that has been accumulated over many years as a partner company of a major vacuum equipment manufacturer to its own brand equipment which makes it possible to design and manufacture user-friendly, robust, high quality sputtering equipment to meet the customer’s needs.



Feature of sputtering

• Since the impact energy of the material that collides with the substrate is strong, a thin film with high adhesion can be obtained.
• Since the material flies linearly in a certain direction, the film adheres less to other than the substrate compared to the conventional deposition methods. However, a film is difficult to adhere to the side wall surface of the uneven portion.
• Film thickness can be easily controlled by adjusting various conditions such as power supply and deposition time.
• Low consumption of target material and low replacement frequency.
• A film with a uniform thickness can be formed over a wide area.
• High melting point materials and insulating films can be formed.
• When making an alloy, the composition of the material is less likely to be changed compared to a vapor deposition that melts the material at a high temperature.
• Compound film also can be obtained by reactive sputtering combining nitrogen, oxygen, hydrogen, etc.
• Deposition surface of the substrate can be plasma cleaned (reverse sputtering) by applying high pressure to the substrate holder.
• The deposition speed (deposition rate) is slower than the vapor deposition.



The structure and principle of the sputtering equipment







01.Vacuum chamber

The cathode (electrode) for mounting the target material and the substrate (wafer) are placed to be opposite in the vacuum chamber. The distance between them is about several tens to hundred mm.

The figure shows an example of sputter up (face down) in which the deposition direction is from bottom to top. The sputter-up arrangement has two advantages: it prevents foreign material to adhere to the substrate surface, and the cathode side with a water cooling mechanism is easy to maintain.

Sputter down (face up) arrangement with the mechanism turned upside down is useful for film deposition that cannot be fixed.

A sliding shutter plate is placed between the cathode and the substrate so that the film formation timing can be controlled.



02.Cathode

SUGA Co., Ltd. employs PMC (Planar Magnetron Cathode) system. The green dotted line in the figure explains collectively called the cathode.

An oxygen-free copper back plate (backing plate) is placed on the back of the sputtering target, which is the film forming material. Although many metal-based targets can be deposited properly when it’s placed on a backing plate, compound targets are often required “bonding process” to bond to the backing plate in order to increase cooling efficiency and prevent cracking and breakage of the material.

Whole series of services are available from target arrangement to bonding processing.

A water-cooled permanent magnet is placed under the back plate. A ring-shaped magnet and a cylindrical magnet are fixed to the base of the disk (Yoke) although the figure appeared to be showed that three magnets are arranged. A circular tunnel is formed on the target where the magnetic field generated by the magnet and the electric field generated by the application of voltage are orthogonal to each other, and a high-density plasma discharge is generated in this area.



03.Vacuum, and Ar gas

To generate plasma discharge, first evacuate the vacuum vessel (film formation chamber). In general, 0.2~10Pa is good enough for plasma discharge but for the purpose of producing high-quality thin films, it is desirable to reduce the gas components (outgas) released from the inner walls and structures of the equipment under vacuum as well as residual gas typified by water present in the deposition chamber as much as possible

Therefore, a turbo molecular pump is employed that can reduce pressure to the high vacuum range. Depending on the specifications of the equipment and pump, a certain amount of time will be required to obtain 10-5 Pa or even lower.
After reducing the pressure to the ultimate vacuum, keep the pressure at about 0.5Pa after plasma excitation while introducing a high-purity argon gas.

 The reason why argon gas is used in the sputtering equipment is that the sputtering rate is relatively good and the inert gas should make it difficult for chemical reactions with other materials to occur. Argon is also popular because of its high purity and low costs.
N2 and O2 may be used for reactive sputtering other than argon. Rare gases such as He, Ne, Kr, and Xe may be used for other purposes.



04.Plasma discharge

By RF sputtering power supply, voltage is applied to the cathode and electrons emitted from the target surface collide with floating argon molecules. Electrons are knocked out of the argon molecules by collision and Ar + ions are generated. Electrons have the property of flowing into the conductive body, but there is no escape near the target under the plasma. As a result, the density of plasma increases near the magnetic field above the target, and Ar + ions are generated efficiently.
Ar + ions, which are accelerated by an electric field under plasma, fly and collide at high speed (thousands of kilometers per second) toward the cathode surface. The phenomenon that Ar + ions blow off target atoms is called sputtering.

 The atoms on the cathode surface are sputtered by collision with Ar ions, and collide at high speed (10,000 km per hour) at the opposite substrate side. A thin film is gradually formed on the surface of the substrate due to repeated collisions of atoms of the target material. Since atoms collide with strong kinetic energy on the substrate surface, the thin film formed by sputtering equipment has excellent adhesion.



05.RF power supply

As the standard, SUGA Co., Ltd. employs RF power supply for its Sputtering equipment. RF sputter is equipped with a 13.56MHz high frequency AC power supply (RF power supply) and matched in the matching box, and discharged while switching the anode and cathode at high speed.
For insulating target material, discharge does not last in DC power sourced sputtering equipment whereas RF power sourced sputtering equipment can stably maintain plasma and has better flexibility. In addition, since an RF power supply with a pulse function is adopted as standard, insulation targets that are prone to abnormal discharge can be also handled.

Please get the local consultation for the installation of high frequency wave equipment.
